Specification
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum


Manual: C - f''' Material
Prestant
Octaaf
Woudfluit
Bourdon
Violoncel
Quint
Viola di Gamba
Bourdon (Ped)
 8'
4'
2'
8'
16' Disc.
3'
8'
16'
 Metal 1879
Metal ca. 1845
Metal
C - B Oak, rest Metal 1879
Metal c' - f''' ca. 1845
Metal ca. 1845
Metal C - f''' ca. 1845 (Bas combined with Bourdon 8')
Wood 1778 added in Hauptwerk from our Haringe set.


Demos
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum


All Demos Composer Organist

▶
C. Bute - Air
Toon info
▶
A. Guilmant - Melodie
Toon info
▶
A. Guilmant - Prière
Toon info
▶
V. Klaus - Was Gott tut, das ist wohlgetan
Toon info
▶
J. Lemmens - Communion II
Toon info
▶
F. Mendelssohn - Finale Sonate 6
Toon info
▶
J.S. Bach - Liebster Jesu, wir sind hier
Toon info
▶
J.S. Bach - Invenzione 4
Toon info
▶
G.F. Haendel - Allegro
Toon info
▶
J. Rheinberger - Romanza
Toon info
▶
Arr: J.P. Teeuw - Giga en Pastorale Anonymus
Toon info
▶
G.F.Haendel - Allegro from Concerto 10
Toon info
▶
G.F.Haendel - Andante-Allegro from Concerto 6
Toon info

Download Information
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum


Download files: Would you like to download this sampleset for free, please send a message via the Request form, you will then receive access to the download files via e-mail.


Important : Before download, first read the comments below at 'General'.

General
Installing a sampleset

Before download and install, note the following:
1. Download all .CompPkg.Hauptwerk files.
2. Leave these files in the same folder and
3. Do not change the file names and
4. Do not unpack by hand.
5. Check the MD5 checksums with the WinMD5 program, free to download from
http://www.winmd5.com or http://www.fastsum.com
If a checksum is incorrect, discard the wrong download file from the PC and download that file again.
6. Start Hauptwerk (File/Install organ....), select in the folder where you just downloaded the files,
the file with extension .CompPkg_Hauptwerk_rar in Hauptwerk's 'component installer'.
Hauptwerk automatically finds the other files.
7. If you get error messages, scroll to the end of the log file (this opens automatically if something goes wrong when unpacking) to see what goes wrong.
Usually a file is missing, or there is a file in the wrong folder or a file is damaged.
8. Before loading the sampleset, check the system information regarding the expected memory usage etc.

Note: Please contact us via the Contact form if you encounter any issues; we will try to assist you.

System requirements
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum


The computer

To play the full Hauptwerk 5 version of this sampleset without restrictions you need a high-speed modern computer with e.g. Windows 10 64 bit and about 3 GB RAM installed. The best results are possible with computers of Apple-MacIntosh. We do not have experience with the Mac. It is very difficult to specify exactly what you need. The "mother" website hauptwerk.com gives much information about this.
Prerequisites .
This virtual organ from Wirdum is available from Hauptwerk version 5 and can be downloaded after purchase.
Below is a Table of memory usage .
On other systems, these values can vary considerably! Please note that your Operating System also requires considerable memory.


The sound card

A good internal or external sound card. For more information go to: hauptwerk.com .


Manuals/keyboards/pedal òr complete organ with MIDI out

1 manual/keyboard and a (at least 25 keys) pedal òr a complete electronic organ with MIDI out.
Beautiful consoles specifically designed for Hauptwerk are commercially available.
In the Netherlands these are available through, for example,

Those who are technically inclined can provide their keyboard with MIDI capability using hardware from, for example, MIDI-Hardware.com or MGB . We ourselves have done this using a Heyligers organ dating from around 1975 (using WIRA hardware). The conversion was about 300 Euro and everything has worked perfectly for years.


Speakers/headphone

The superb sound quality of Hauptwerk is best experienced through high-quality headphones, such as AKG or Sennheiser.
We prefer connecting the sound card to a (possibly multi-channel) sound system. The above mentioned companies can also advise you on any purchases in this area.
What you definitely should not do is listen to Hauptwerk through the built-in speakers of the monitor or a set of €10 computer speakers!



Table of memory usage
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum

From Hauptwerk 5 (space needed on you hard drive ca 1.62 GB)

Load manner Memory Requirements
Operating System not included
Geladen 16 bit 48 kHz, alles gecomprimeerd, multiloops, multirelease, geluiden. 802 MB
Geladen 16 bit 48 kHz, ongecomprimeerd, multiloops, multirelease, geluiden. 1208 MB
Geladen 24 bit 48 kHz, alles gecomprimeerd, single loop, single release, geluiden. 897 MB
Geladen 24 bit 48 kHz, alles gecomprimeerd, multiloops, multirelease, geluiden. 1385 MB
Volledig geladen 24 bit 48 kHz, ongecomprimeerd, multiloops, multirelease, geluiden. 2172 MB


Screen layout
of
the Van Oeckelen organ from the Hervormde kerk in Wirdum

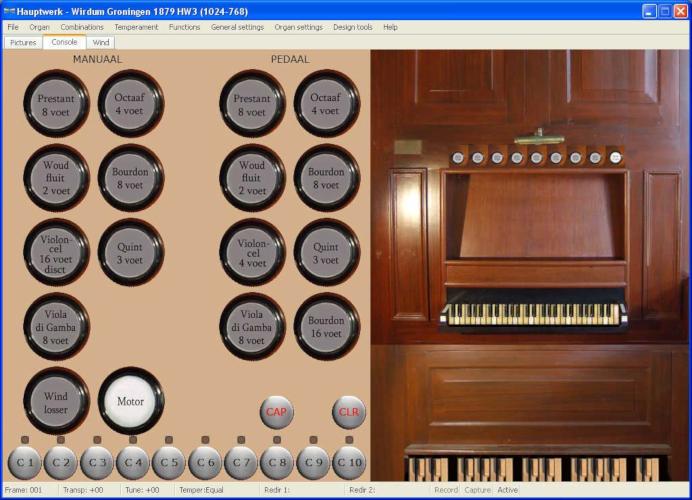

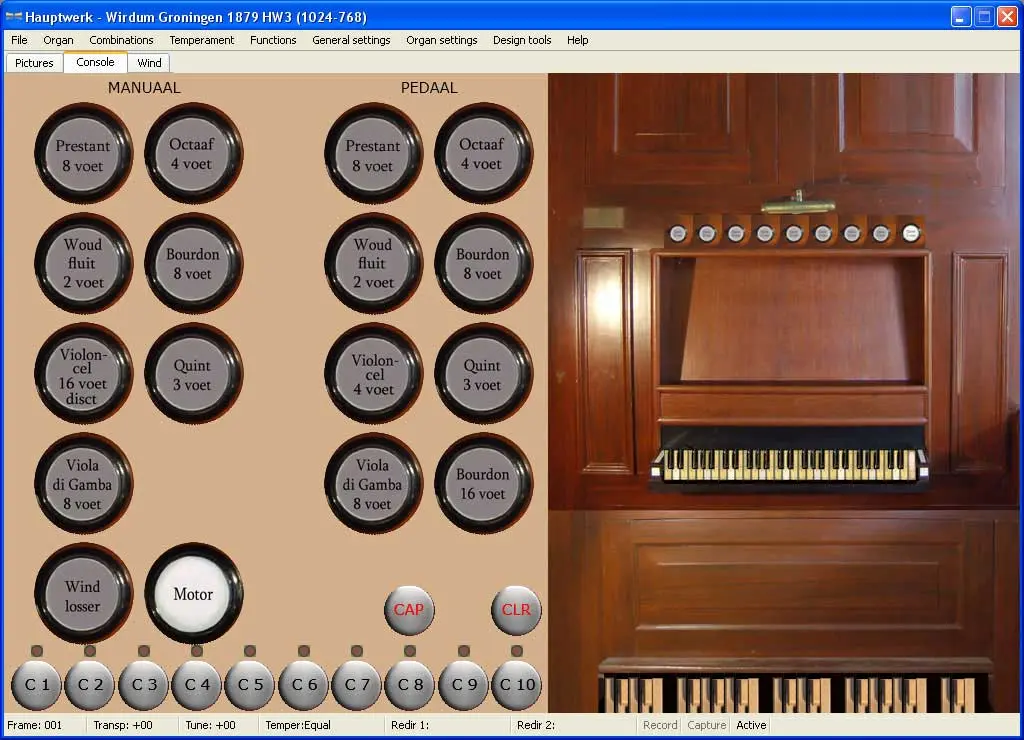

Virtual console
Virtual console.

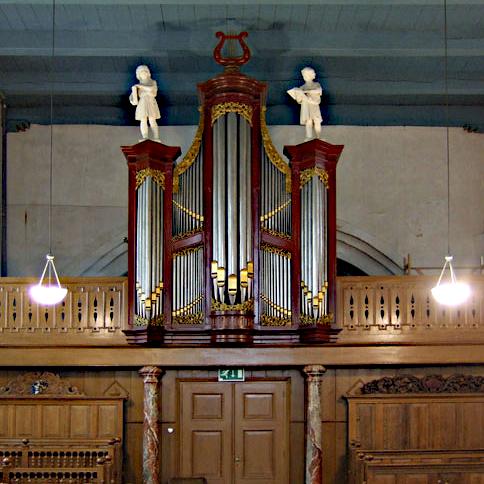

The Van Oeckelen organ from the Hervormde kerk in Wirdum

FREE Download


play-buttonPLAY DEMO
A. Guilmant - Melodie
Historical information

1879 Built by P. van Oeckelen
1961 Superstructure and shutters removed during restoration of the church.
1962 Restoration:
Organ case painted a cream colour,
Feeder bellows and hand pump removed,
Wind pressure lowered to 65 mm.
Unknown date: Organ case painted dark green.
1999 Restored by organ builder van der Putten.

Technical information:

Windpressure: 85 mm (3.35 inch)
Tuning: a' = 440 Hz.
Temperament: Equal.
Pedals: 22 keys fixed.

You listen to the Van Oeckelen organ from the Hervormde kerk in Wirdum
